Web service diagram

With the Docker class, I tried to set “Docker, AWS(Server, RDB), Jenkins”.

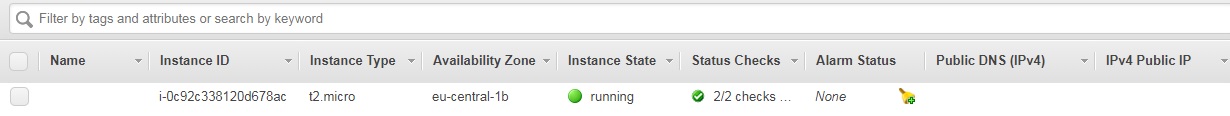

1. Install EC2 instance and connect the server via SSH.


2. Install Jupyter Notebook (Default port : 8888)

3. Install https using Openssl

4. run jupyter

   sudo systemctl daemon-reload
   sudo systemctl enable jupyter
   sudo systemctl start jupyter
   sudo systemctl status jupyer


5. Install docker

   sudo apt-update
   sudo apt install apt-transport-https
   sudo apt install ca-certificates
   sudo apt install curl
   sudo apt install software-properties-common
   curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -
   sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu bionic stable"
   sudo apt update
   apt-cache policy docker-ce
   sudo apt install docker-ce
   sudo systemctl status docker // check docker is running fine.

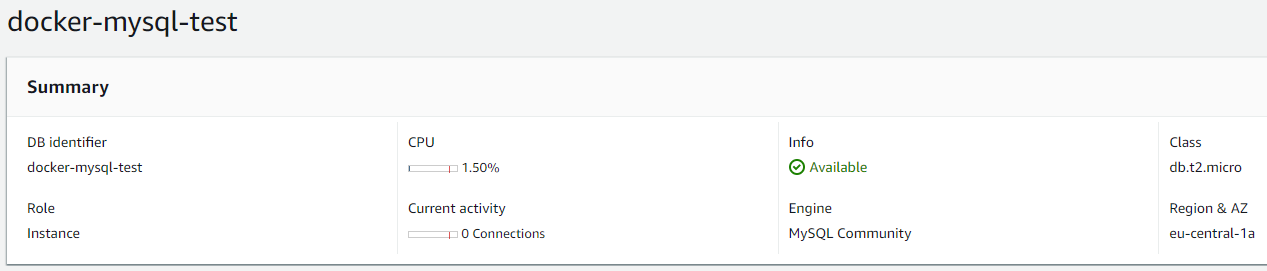

6. Create Database(MySQL 5.6) on Amazon RDS


7. Check the inbound rule on Amazon to allow the port 3306 and connection check

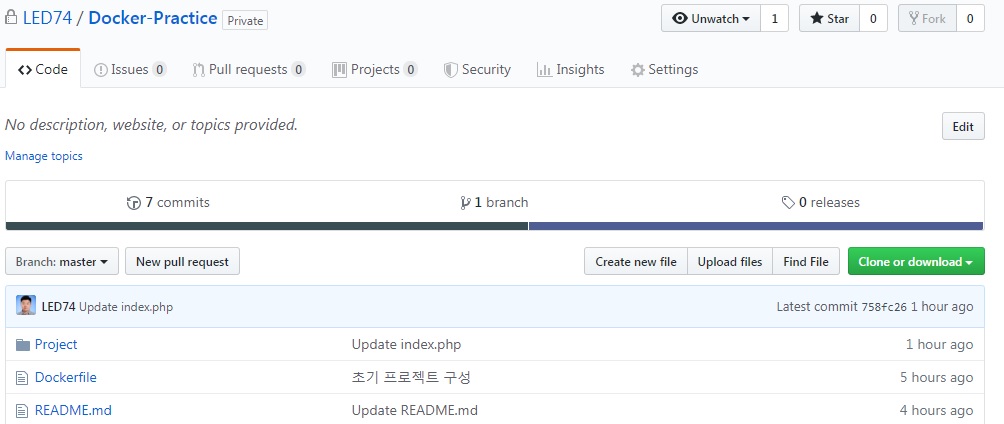

8. Create repository on Github



   git clone https://github.com/LED74/Docker-Practice.git


9. Create a dockerfile

   FROM ubuntu:18.04
   MAINTAINER Euido LEE <leeeuido@gmail.com>
   # Avoiding user interaction with tzdata
   ENV DEBIAN_FRONTEND=noninteractive
   RUN apt-get update
   RUN apt-get install -y apache2 # Install Apache web server (Only 'yes')
   RUN apt-get install -y software-properties-common
   RUN add-apt-repository ppa:ondrej/php # For Installing PHP 5.6
   RUN apt-get update
   RUN apt-get install -y php5.6
   # Connect PHP & MySQL
   RUN apt-get install -y php5.6-mysql
   EXPOSE 80
   CMD ["apachectl", "-D", "FOREGROUND"]


10. Create a index.php and README.md file

    git add .
    git commit -m "First project configulation"
    git push

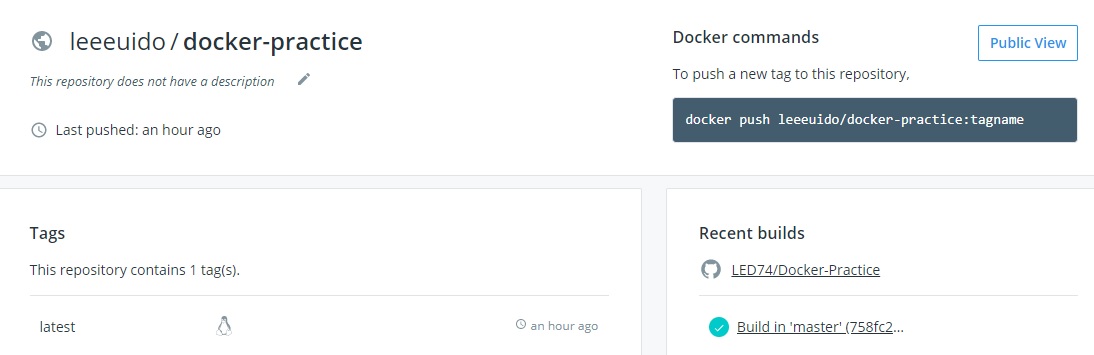

11. Create a repository on Dockerhub and connect with Github



12. Install Jenkins on the EC2 Server.

    docker pull Jenkins
    docker run -d -p 8080:8080 -v /home/jenkins/:/var/jenkins_home -v /var/run/docker.sock:/var/run/docker.sock -u root jenkins
    docker ps -a


    • Add 8080 port to the inbound rule of the EC2 Server.
    • Complete initial setting of Jenkins
13. Install docker in the Jenkins container

    docker exec -it 0fdfae20341b /bin/bash
    curl -fsSLO https://get.docker.com/builds/Linux/x86_64/docker-17.04.0-ce.tgz
    tar xzvf docker-17.04.0-ce.tgz
    mv docker/docker/ /usr/local/bin
    docker login
    cd /home
    git clone https://github.com/LED74/Docker-Practice.git


14. Fill in the Execete shell on the Jenkins

    cd /home/Docker-Practice
    git pull
    docker rm -f php || true
    docker pull leeeuido/docker-practice
    docker run -p 80:80 -v /home/Docker-Practice/Project:/var/www/html --name php leeeuido/docker-practice
